DIN and other Standard Connections

In Radio to Tape Line Output
1 out left 1 -
4 out right 4 -
3 in left 3 out left
5 in right 5 out right
2 ground 2 ground
MIDI Line Input
1 - 1 in left
4 red (positive) 4 in right
3 - 3 -
5 blue (negative) 5 -
2 ground 2 ground

Stereo Jack

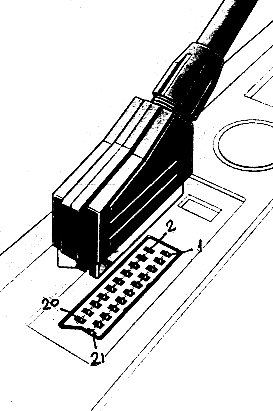

SCART

1 Audio out, right
2 Audio in, right
3 Audio out, left
4 Audio ground
5 Blue ground
6 Audio in, left
7 Blue in/out
8 Function
9 Green ground
10 Clock
11 Green in/out
12 Remote
13 Red ground
14 Remote ground
15 Red in/out
16 Blanking input
17 Composite ground
18 Blanking ground
19 Composite output
20 Composite input
21 Screen, ground



PDS cable
B standard

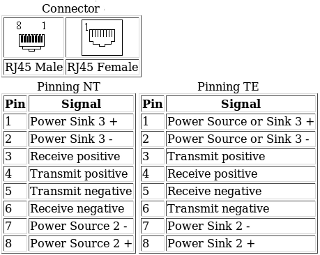

RJ45  ISDN S0 connections
1. N.C. (not connected)
2. N.C.
3. RX + (#2)
4. TX + (#1)
5. TX -  (#1)
6. RX -  (#2)
7. N.C.
8. N.C.

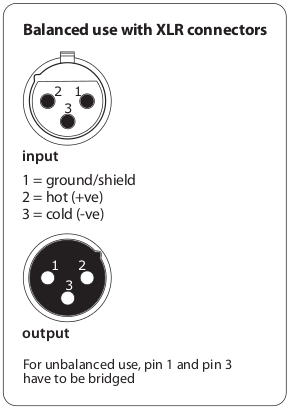

XLR connections

XLRconnections



Phantom power +48V pin 2/3

Phantom power 0V pin 1

DMX Connections

1 = Ground
2 = Data 1- (Primary Data Link)
3 = Data 1+ (Primary Data Link)
